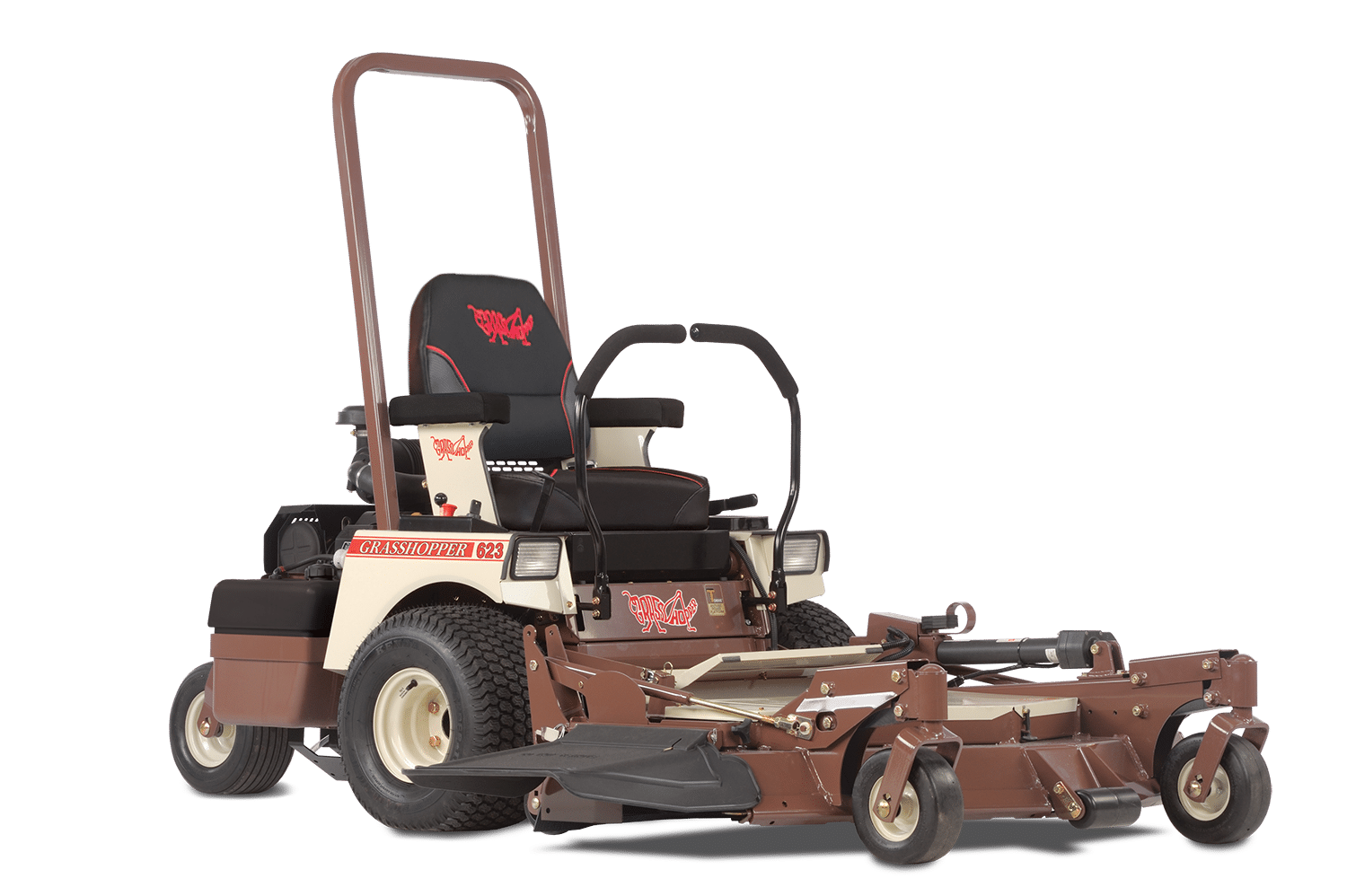

Grasshopper 623T

An ideal FrontMount™ solution for home or business use, the Grasshopper Model 623T riding lawn mower with zero-turn maneuverability offers the power, reliability and economical performance that homeowners and lawn care professionals need to get the job done. Make quick work of cleaning the underside of the cutting deck with the exclusive PowerFold® deck lift/electric height adjustment feature. The front-mounted deck removes and can be replaced with turf renovation and snow removal implements for year-round productivity.

REQUEST QUOTE
GET FINANCING

Type/Horsepower/Cylinders
Kohler Command Pro, V-Twin
Displacement
42.4 cu. in. (694 cc)
Lubrication System
Pressure Lube/Filter
Crankshaft
Horizontal
Cooling System
Air
Fuel
Gasoline – unleaded
Fuel Capacity
4.0 U.S. Gal. (15.14 l)
Optional Fuel Capacity
NA
Air Cleaner
Heavy-duty, remote mounted, cyclonic, dual element air filtration.
Muffler
Ultra-quiet, industrial type

DECK
DuraMax (52″)
Mulching Package #
504566(48), 504567(52)
DURAMAX® DECK SIZE
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
*
– 52″ Deck
*
– 61″ Deck
NA
– 72″ Deck
NA
CUTTING HEIGHT RANGE
1.25 to 5.0 in. (3.2 cm to 12.7 cm)
CONSTRUCTION (Robotic-welded steel)
Tubular 2.25 in. x 4 in. boxed members with 0.25 in. gussets. Formed double thickness hardened steel (0.239 in. = 3 gauge (6.07mm)) truss spindle plane and (3) Sentry™ spindles and a triple-strength upper deck, over 1/2 inch thick in stress zones. Geometrically engineered design with 7 gauge skirts to withstand the brunt of commercial mowing.
BLADES (Tempered, alloy steel)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
(2) 18 in. (45.7 cm)
(1) 15 in. (38.1 cm)
– 52″ Deck
(3) 18 in. (45.7 cm)
– 61″ Deck
NA
– 72″ Deck
NA
SPINDLE ASSEMBLIES
Sentry™ Spindle System, 2.5 cm (approx. 1 in.) O.D. shaft. Double bearings greasable from top of deck. Spindle head designed to eliminate fiber wrap.
SPINDLE HOUSINGS
8 in. (20.3 cm)-diameter machined aluminum housing with 6-bolt pattern.
BLADE DRIVE
Maintenance-free gearbox with single Kevlar V-belt and idler arm tensioning.
TRIMABILITY (Outside of std. tire to left trim side)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
3.5 in. (8.9 cm)
– 52″ Deck
2.5 in. (6.4 cm)
– 61″ Deck
NA
– 72″ Deck
NA

Battery (maintenance-free)
12 Volt
Starter
Solenoid shift
Ignition
Breakerless
Interlock System
Prevents engine start when PTO clutch is engaged or steering levers are in drive position. Allows operator dismount without engine shutdown only when PTO is disengaged and steering levers are locked in neutral.

Seat
Iso-mounted Premium Comfort Seat. Features include a high-back, deep-cushioned, foam-padded Cordura®-covered, padded arm rests, padded backrest with lumbar support, coil-spring suspension and embroidered Grasshopper logo on seat back.
Suspension
AntiVibe PowerPlatform™ with iso-mounted seat and footrest
Console-mounted Instruments
Low engine oil pressure and parking brake indicator lights, work lights, digital hour meter, ignition and push/pull PTO switches. Choke integrated with throttle lever.
Work Lights
Optional – LED
Hour Meter
Standard

Type
T-Drive™ hydrostatic transmission with tandem 12 cc Parker pumps-in-reservoir, in-line CoolFan™ for cooling efficiency, design-matched Parker high-torque wheel motors. AntiVibe Power Platform® reduces vibration for the operator.
Filtration/Hydro Fluid
Integrated, replaceable, high-efficiency, fine-particle filter / Grasshopper CoolTemp Hydro-Max™ fluid withstands high and low temperature extremes for 1,000 hour change intervals.
Speed
0-8.5 mph (0-13.7 kph) forward; 0-5.5 mph (0-8.9 kph) reverse.
Turning Radius
True zero degree, turns within own length with counter-rotating, independently powered drive wheels. Seat is pivot point.
Steering
One- or two-hand operation with adjustable, HydraSmooth™, dual levers that automatically return to neutral from either forward or reverse position.
Brakes
Dynamic braking through hydrostatic transmission.
Parking Brake
Disc parking brakes, one for each drive wheel.
Attachment Drive
Telescoping PTO shaft with two high-speed U-joints, Quik-D-Tatch® coupler and heavy-duty electric Mag Stop® blade clutch/brake.

MidMount
Drive Wheels – Standard (4-ply rated)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
NA
– 52″ Deck
NA
– 61″ Deck
NA
– 72″ Deck
NA
Drive Wheels – Optional (4-ply rated)
NA
Front Wheels – All Models
NA
FrontMount
Drive Wheels – Standard (4-ply rated)
20×10.00×8 turf tread, 4-ply rated
Drive Wheels – Optional (4-ply rated)
22 x 11-10 turf tread, 4-ply rated
22 x 11-12 Michelin® X® Tweel® airless turf tread
Single Tail Wheel
13×6.50×6 rib tread, pneumatic
Wide Stance Single Fork Tail Wheel
NA
Deck Tires (4-ply rated)
– 41″ Deck
NA
– 42″ Deck
– 44″ Deck
NA
– 48″ Deck
9×3.50×4 (flat proof), 4-ply rated
– 52″ Deck
9×3.50×4 (flat proof), 4-ply rated
– 61″ Deck
NA
– 72″ Deck
NA

Height (Seat Back)
43.5 in. (110.5 cm)
Height (Seat Cushion)
26.0 in. (66.0 cm)
Height (ROPS)
63.0 in. (160.0 cm)
Length (frontmount w/ DuraMax® Deck – Mowing Position)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
99.0 in (251.5cm)
– 52″ Deck
100.0 in. (254.0 cm)
– 61″ Deck
NA
– 72″ Deck
NA
Length (FrontMount Power Unit + DuraMax® Deck – Folded Up)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
78.0 in. (198.2 cm)
– 52″ Deck
– 61″ Deck
NA
– 72″ Deck
NA
Deck Width (Side Discharge)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
61.5 in. (156.2 cm)
– 52″ Deck
65.5 in. (166.5 cm)
– 61″ Deck
NA
– 72″ Deck
NA
Deck Width (Mulch*)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
49.5 in. (125.7 cm)
– 52″ Deck
53.5 in. (135.9 cm)
– 61″ Deck
NA
– 72″ Deck
NA
FrontMount PowerUnit Only (Width/Length)
47.0 in. (119.4 cm)/59.0 in. (149.9 cm)
FrontMount Power Unit (Wheelbase)
46.0 in. (116.8 cm)

(Uncrated)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
1040 lbs. (471.7 kg)
– 52″ Deck
1120 lbs. (508.0 kg)
– 61″ Deck
NA
– 72″ Deck
NA
FrontMount Power Unit Only (uncrated)
750 lbs. (340.2 kg)
FrontMount Deck Only – Side Discharge (uncrated)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
290 lbs. (131.5 kg)
– 52″ Deck
370 lbs. (167.8 kg)
– 61″ Deck
NA
– 72″ Deck
NA
Mulching Package
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
25 lbs. (11.3 kg)
– 52″ Deck
29 lbs. (13.2 kg)
– 61″ Deck
NA
– 72″ Deck
NA

All specifications and information displayed on this Web site are subject to change without notice.
