Grasshopper 335B

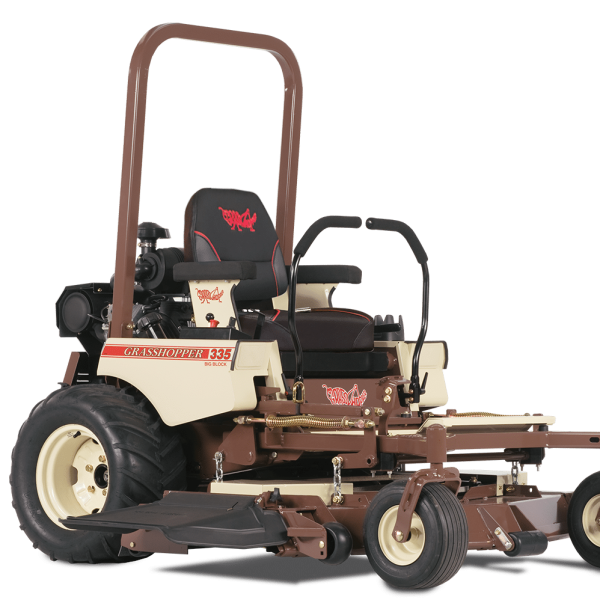

Power, efficiency, performance, durability and easy maintenance all define the Grasshopper Model 335 zero-turn ride-on lawn mower. This mid-mount mower provides intense power to meet a professional landscaper’s demands in commercial mowing applications.

REQUEST QUOTE
GET FINANCING

Type/Horsepower/Cylinders
B&S Vanguard Big Block, 2-cylinder
Displacement
60.6 cu. in. (993 cc)
Lubrication System
Pressure Lube/Filter
Crankshaft
Horizontal
Cooling System
Air
Fuel
Gasoline – Unleaded
Fuel Capacity
12 U.S. Gal. (45.4 l)
Optional Fuel Capacity
NA
Air Cleaner
Heavy-duty, remote mounted, cyclonic, dual element air filtration.
Muffler
Ultra quiet, single, industrial type.

DECK
DuraMax
Mulching Package #
504567(52), 504569(61), 504571(72)
DURAMAX® DECK SIZE
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
NA
– 52″ Deck
*
– 61″ Deck
*
– 72″ Deck
*
CUTTING HEIGHT RANGE
1.0 to 5.0 in. (2.5cm to 12.7 cm)
CONSTRUCTION (Robotic-welded steel)
Double-layered 10-gauge plus 7-gauge formed-steel laminated spindle plane 0.313 in (7.95 mm) thick- more than 25% thicker than 0.25 in. (6.35 mm) with 7-gauge skirts for geometric strength. Spindle plane is 0.9 in.(22.86 mm) thick in stress zones. Anvil-edge design with 0.5 in. (12.7 mm) reinforcement on front edge of deck.
BLADES (Tempered, alloy steel)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
NA
– 52″ Deck
(3) 18 in. (45.7 cm)
– 61″ Deck
(3) 21 in. (53.3 cm)
– 72″ Deck
(3) 25 in. (63.5 cm)
SPINDLE ASSEMBLIES
Sentry™ Spindle System, 2.5 cm (approx. 1 in.) O.D. shaft. Double bearings greasable from top of deck. Spindle head designed to eliminate fiber wrap. Spindle cones shield housing and lower bearings from fiber wrap and dirt ingestion.
SPINDLE HOUSINGS
8 in. (20.3 cm)-diameter housing with 6-bolt pattern. Machined aluminum housing. Cast iron on 72-inch deck.
BLADE DRIVE
Belt drive with single Kevlar V-belt and idler arm tensioning.
TRIMABILITY (Outside of std. tire to left trim side)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
NA
– 52″ Deck
NA
– 61″ Deck
NA
– 72″ Deck
NA

Battery (maintenance-free)
12 Volt
Starter
Solenoid shift
Ignition
Breakerless
Interlock System
Prevents engine start when PTO clutch is engaged or steering levers are in drive position. Allows operator dismount without engine shutdown only when PTO is disengaged and steering levers are locked in neutral.

Seat
Iso-mounted Premium Comfort Seat. Features include a high-back, deep-cushioned, foam-padded Cordura®-covered, padded arm rests, padded backrest with lumbar support, coil-spring suspension and embroidered Grasshopper logo on seat back.
Suspension
InFrame™ suspension with iso-mounted seat and footrest
Console-mounted Instruments
Low engine oil pressure and parking brake warning lights, combination electronic fuel gauge/hour meter, ignition and push/pull PTO switches. Choke integrated with throttle lever.
Work Lights
Optional – LED
Hour Meter
Standard

Type
Design-matched G2 hydrostatic system with auxillary cooling fans, HydroGear variable displacement 16 cc piston-type pumps and high-torque Parker wheel motors.
Filtration/Hydro Fluid
7 micron absolute, spin-on / Grasshopper CoolTemp Hydro-Max™ fluid withstands high and low temperature extremes for 1,000-hour change intervals.
Speed
0 – 10.5 mph (0 – 16.9 kph) 0 – 6.0 mph (0 – 9.7 kph) reverse
Turning Radius
True zero degree, turns within own length with counter-rotating, independently powered drive wheels.
Steering
One- or two-hand operation with adjustable Hydra-Smooth™ dual levers that automatically return to neutral from either forward or reverse position.
Brakes
Dynamic braking through hydrostatic transmission.
Parking Brake
Disc parking brakes, one for each drive wheel.
Attachment Drive
NA

MidMount
Drive Wheels – Standard (4-ply rated)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
NA
– 52″ Deck
23×10.5×12 turf, 4-ply rated
– 61″ Deck
24×12.00×12 turf, 4-ply rated
– 72″ Deck
24×12.00×12 turf, 4-ply rated
Drive Wheels – Optional (4-ply rated)
24×12.00×12 bar tread, 4-ply rated
Front Wheels – All Models
13×6.50×6; rib tread, pneumatic with greasable, double-sealed bearings to protect from grass wrap.
FrontMount
Drive Wheels – Standard (4-ply rated)
NA
Drive Wheels – Optional (4-ply rated)
NA
Single Tail Wheel
NA
Wide Stance Single Fork Tail Wheel
NA
Deck Tires (4-ply rated)
– 41″ Deck
NA
– 42″ Deck
– 44″ Deck
NA
– 48″ Deck
NA
– 52″ Deck
NA
– 61″ Deck
NA
– 72″ Deck
NA

Height (Seat Back)
-52″ 49.5 in. (125.7 cm); -61″ & -72″ 50 in. (127.0 cm)
Height (Seat Cushion)
-52″ 31.5 in. (80.0 cm); -61″ & -72″ 32.0 in. (81.3 cm)
Height (ROPS)
70.0 in. (177.8 cm)
Length (midmount w/ DuraMax® Deck – Mowing Position)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
NA
– 52″ Deck
79.5 in. (201.9 cm)
– 61″ Deck
81.0 in. (205.7 cm)
– 72″ Deck
84.5 in. (214.6 cm)
Length (FrontMount Power Unit + DuraMax® Deck – Folded Up)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
NA
– 52″ Deck
NA
– 61″ Deck
NA
– 72″ Deck
NA
Deck Width (Side Discharge)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
NA
– 52″ Deck
65.6 In. (166.5 cm)
– 61″ Deck
74.5 in. (189.2 cm)
– 72″ Deck
85.5 in. 227.3 cm)
Deck Width (Mulch*)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
NA
– 52″ Deck
53.5 in. (135.9 cm)
– 61″ Deck
62.5 in.* (158.8 cm)
– 72″ Deck
73.5 in.* (186.7 cm)
FrontMount PowerUnit Only (Width/Length)
NA
FrontMount Power Unit (Wheelbase)
NA

(Uncrated)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
NA
– 52″ Deck
1140 lbs. (517.1 kg)
– 61″ Deck
1190 lbs. (539.8 kg)
– 72″ Deck
1280 lbs. (580.6 kg)
FrontMount Power Unit Only (uncrated)
NA
FrontMount Deck Only – Side Discharge (uncrated)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
NA
– 52″ Deck
NA
– 61″ Deck
NA
– 72″ Deck
NA
Mulching Package
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
NA
– 52″ Deck
29 lbs. (13.2 kg)
– 61″ Deck
36 lbs. (16.3 kg)
– 72″ Deck
44 lbs. (20.0 kg)

All specifications and information displayed on this Web site are subject to change without notice.
