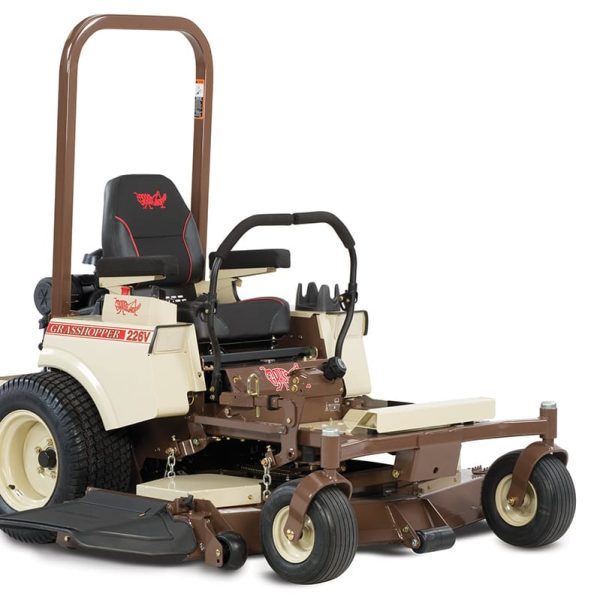

Grasshopper 226V-G4

The Model 226V-G4 zero-turn riding lawn mower features heavy-duty Hydro-Gear ZT-4400 commercial transaxles with 1-3/8-inch axles and integrated cooling fans for a longer service life. Enjoy the cost-effective zero radius performance and productivity of a professional-quality lawn mower that offers the best in comfort, durability and quality in an affordable package.

REQUEST QUOTE
GET FINANCING

Type/Horsepower/Cylinders
B&S Vanguard, V-Twin
Displacement
49.4 cu. in. (810 cc)
Lubrication System
Pressure Lube/Filter
Crankshaft
Vertical
Cooling System
Air
Fuel
Gasoline – unleaded
Fuel Capacity
6.5 U.S. Gal. (26.6 l)
Optional Fuel Capacity
NA
Air Cleaner
Remote-mounted, centrifugal multi-stage air cleaner with advanced debris management
Muffler
Ultra quiet, single, industrial type.

DECK
NA
Mulching Package #
504567(52), 504569(61)
DURAMAX® DECK SIZE
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
NA
– 52″ Deck
*
– 61″ Deck
*
– 72″ Deck
NA
CUTTING HEIGHT RANGE
1.0 to 4.5 in. (2.5 to 11.4 cm)
CONSTRUCTION (Robotic-welded steel)
Double-layered 10-gauge plus 7-gauge formed-steel laminated spindle plane 0.313 in (7.95 mm) thic – more than 25% thicker than 0.25 in. (6.35 mm) with 7-gauge skirts for geometric strength. Spindle plane is 0.9 in.(22.86 mm) thick in stress zones. Anvil
BLADES (Tempered, alloy steel)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
– 52″ Deck
(3) 18 in. (45.7 cm)
– 61″ Deck
(3) 21 in. (53.3 cm)
– 72″ Deck
NA
SPINDLE ASSEMBLIES
Sentry™ Spindle System, 2.5 cm (approx. 1 in.) O.D. shaft. Spindle head designed to eliminate fiber wrap. Double bearings, non-greasable. Spindle cones shield housing and lower bearings from fiber wrap and dirt ingestion.
SPINDLE HOUSINGS
8 in. (20.3 cm)-diameter machined aluminum housing with 6-bolt pattern.
BLADE DRIVE
Belt drive with single Kevlar V-belt and idler arm tensioning.
TRIMABILITY (Outside of std. tire to left trim side)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
NA
– 52″ Deck
NA
– 61″ Deck
NA
– 72″ Deck
NA

Battery (maintenance-free)
12 Volt
Starter
Solenoid shift
Ignition
Breakerless
Interlock System
Prevents engine start when PTO clutch is engaged or steering levers are in drive position. Allows operator dismount without engine shutdown only when PTO is disengaged and steering levers are locked in neutral.

Seat
Iso-mounted Premium Comfort Seat. Features include a high-back, deep-cushioned, foam-padded Cordura®-covered, padded foldable arm rests, padded backrest with lumbar support, coil-spring suspension and embroidered Grasshopper logo on seat back. Adjustable fore and aft.
Suspension
Roomy, iso-mounted footrest with Shock Impact Reduction System™ (SIRS™).
Console-mounted Instruments
Digital hour meter, parking brake indicator light, ignition switch, choke and push/pull PTO switch.
Work Lights
Optional – LED
Hour Meter
Standard

Type
Heavy-duty Hydro-Gear ZT4400 hydrostatic transmissions with cooling fans, integrated transaxles with 12cc piston pumps and 16cc piston motors, gear reduction, internal disc brakes, and 1-3/8 inch axles.
Filtration/Hydro Fluid
Self-contained fluid and internal filtration. CoolTemp HydroMax� fluid withstands high and low temperature extremes for extended service intervals after 100-hour break-in oil change.
Speed
0 – 9.0 mph (0 – 14.5 kph) forward 0 – 6.0 mph (0 – 9.7 kph) reverse
Turning Radius
True zero degree, turns within own length with counter-rotating, independently powered drive wheels.
Steering
One- or two-hand operation with adjustable HydraSmooth™ QuikAjust Tilt™ dual levers with 9-inch adjustment for a custom fit that automatically return to neutral from either forward or reverse position.
Brakes
Dynamic braking through hydrostatic transmission.
Parking Brake
Internal disc brake in transmission
Attachment Drive
NA

MidMount
Drive Wheels – Standard (4-ply rated)
– 41″ Deck
NA
– 42″ Deck
– 44″ Deck
NA
– 48″ Deck
NA
– 52″ Deck
23×10.50×12 turf, 4-ply rated
– 61″ Deck
23×10.50×12 turf, 4-ply rated
– 72″ Deck
NA
Drive Wheels – Optional (4-ply rated)
NA
Front Wheels – All Models
13×6.50×6; pneumatic with greasable, double-sealed bearings to protect from grass wrap.
FrontMount
Drive Wheels – Standard (4-ply rated)
NA
Drive Wheels – Optional (4-ply rated)
NA
Single Tail Wheel
NA
Wide Stance Single Fork Tail Wheel
NA
Deck Tires (4-ply rated)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
NA
– 52″ Deck
NA
– 61″ Deck
NA
– 72″ Deck
NA

Height (Seat Back)
46.0 in. (116.9 cm)
Height (Seat Cushion)
30.0 in. (76.2 cm)
Height (ROPS)
68.0 in. (172.7 cm)
Length (midmount w/ DuraMax® Deck – Mowing Position)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
NA
– 52″ Deck
76.0 in. (193.0 cm)
– 61″ Deck
79.0 in. (200.7 cm)
– 72″ Deck
NA
Length (FrontMount Power Unit + DuraMax® Deck – Folded Up)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
NA
– 52″ Deck
NA
– 61″ Deck
NA
– 72″ Deck
NA
Deck Width (Side Discharge)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
– 52″ Deck
65.5 in. (166.5 cm)
– 61″ Deck
74.5 in. (189.2 cm)
– 72″ Deck
NA
Deck Width (Mulch*)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
– 52″ Deck
53.5 in.* (135.9 cm)
– 61″ Deck
62.5 in.* (158.8 cm)
– 72″ Deck
NA
FrontMount PowerUnit Only (Width/Length)
NA
FrontMount Power Unit (Wheelbase)
NA

(Uncrated)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
– 52″ Deck
960 lbs. (435.4 kg)
– 61″ Deck
1030 lbs. (467.2 kg)
– 72″ Deck
NA
FrontMount Power Unit Only (uncrated)
NA
FrontMount Deck Only – Side Discharge (uncrated)
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
NA
– 52″ Deck
NA
– 61″ Deck
NA
– 72″ Deck
NA
Mulching Package
– 41″ Deck
NA
– 42″ Deck
NA
– 44″ Deck
NA
– 48″ Deck
– 52″ Deck
29 lbs. (13.2 kg)
– 61″ Deck
36 lbs. (16.3 kg)
– 72″ Deck
NA

All specifications and information displayed on this Web site are subject to change without notice.
