Specs
| Dimensions | |
|---|---|
| Bed Height | 20″ |
| Handlebar Height | 37″ |
| Height | 41″ |
| Length | 63.25″ |
| Shipping Weight | 373 lbs |
| Weight | 240 lbs |
| Width | 34.5″ |
| Shipping Dimensions | 49″ L x 41″ W x 40″ H |
| Vol Capacity | 8 cu ft. |
| Engine | |
|---|---|
| Air Filter | Paper & Pre Filter |
| Cooling Methods | Air |
| Displacement | 185 cc |
| Engine Type | OHV |
| Ft Lbs Torque | 9.74 |
| Lubrication | Splash |
| Make | DR |
| Number Of Cylinders | 1 |
| Oil Capacity | 17 oz |
| Oil Type | 15W-40 |
| Pre Cleaner | Yes |
| RPM Speeds | 3400 +/- 100 |
| Starting Type | Electric w/ Recoil Back up |
| Fuel_System | |
|---|---|
| Fuel Capacity | 1.59 qt |
| General | |
|---|---|
| Assembly | Some assembly needed, about 20-30 minutes |
| Speed | Forward 3: 3.7 mph – Forward 2: 2.4 mph – Forward 1: 1.3 mph – Reverse: 1.4 mph |
| Type | Powerwagon |
| Hauling | |
|---|---|
| Bed Dimensions | 44 L x 33 W x 20 H |
| Bed Volume | 8 cu ft |

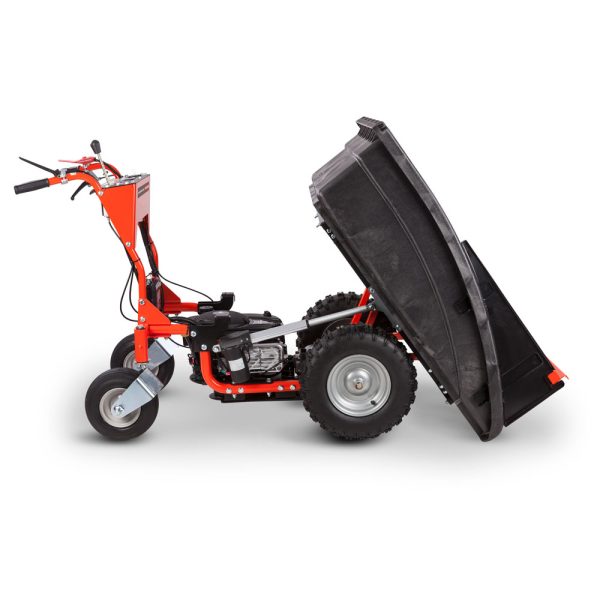

| Dump Angle | 60 degrees |
| Weight Capacity | 800 lbs |
| Wheels_Tires | |
|---|---|
| Front Tire Size | 16″ Diameter, 4″ Width |
| Number of Tires | 4 |
| Rear Tire Size | 11″ Diameter, 4″ Width |
| Warranty | |
|---|---|
| Engine Warranty | 2 yrs residential use, 90 days commercial |
| Machine Warranty | 2 yrs residential use, 90 days commercial |
| Material | |
|---|---|
| Frame | Tubular Steel (1.5″ diameter X 12 GA thick) |
