Specs
| Dimensions | |
|---|---|
| Height | 80″ (w/ boom) |
| Length | 133.6″ |
| Shipping Weight | 760 lbs |
| Weight | 703 lbs |
| Width | 50.7″ |
| Shipping Dimensions | 82.5″ L x 44.5″ W x 26.5″ H |
| Dumping | |
|---|---|

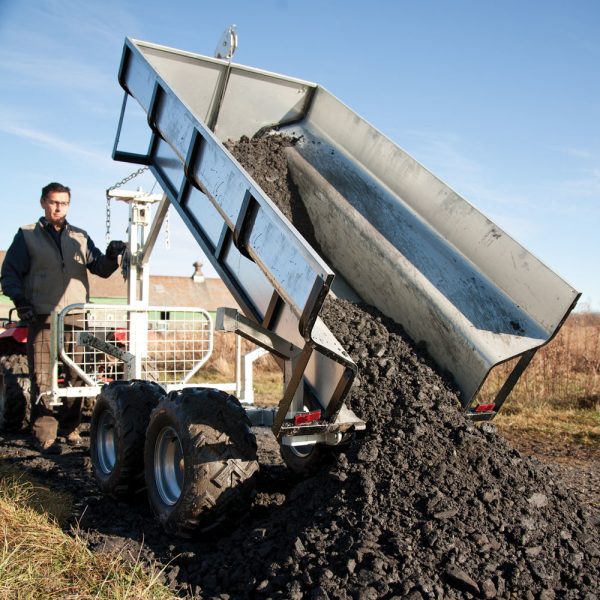

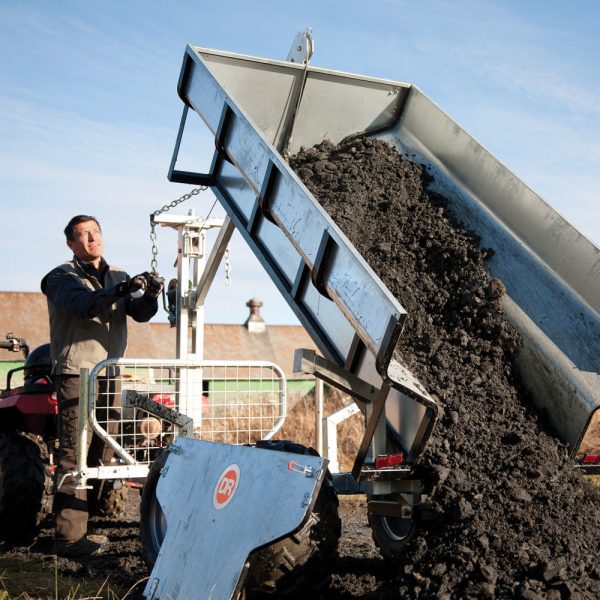

| Dump Angle | 35 degrees |
| Dumping Capacity | 650 lbs |
| General | |
|---|---|
| Assembly | Yes |
| Type | Versa-Trailer |
| Hauling | |
|---|---|
| Bed Dimensions | 79″ L x 42″ W x 24″ H |
| Bed Volume | 31.25 cu ft |
| Dump Angle | 35 degrees |
| Dumping Capacity | 650 lbs |
| Hauling Capacity | 2000 lbs |
| Loading | |
|---|---|
| Boom Angle Positions | 23 degrees left or right; 45 degrees left or right |
| Bucket Rotation | 45 degrees left or right |
| Cable Size | 7/32″ x 25′ |

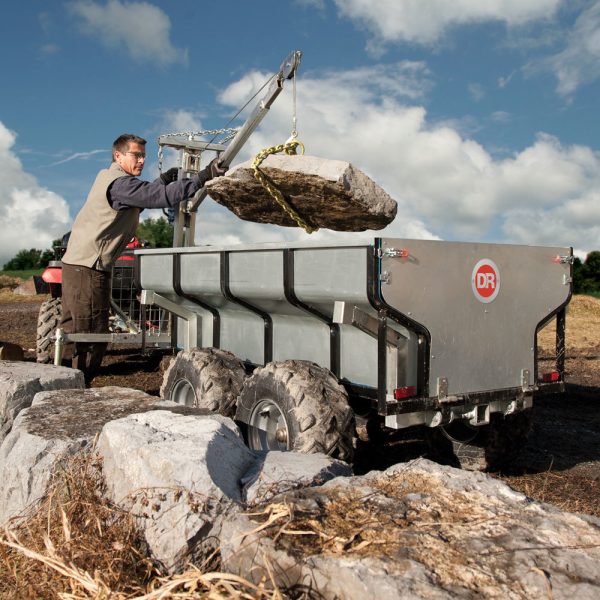

| Crane Lifting Capacity | 440 lbs |
| Hook Size | 5/16″; 1″ opening |
| Loading Height | 5/16″ |
| Loading Reach | 1″ opening |
| Wheels_Tires | |
|---|---|
| Number of Tires | 4 |
| Tire Size | 22″ x 11″ |

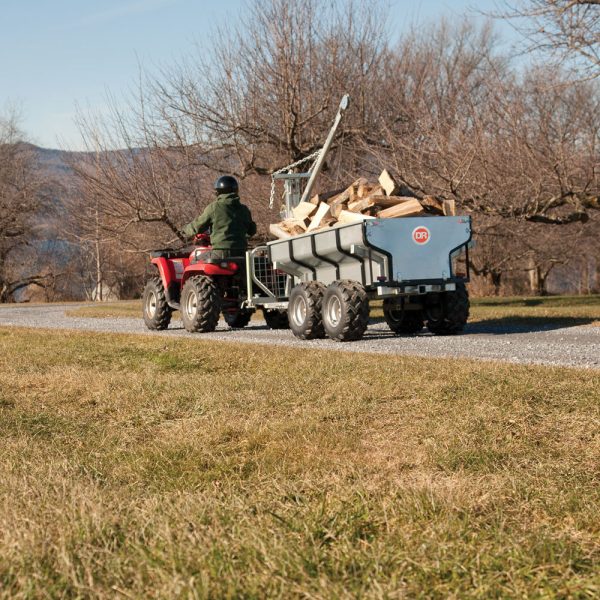

| Towing | |
|---|---|
| Hitch Type | Ball Hitch |
| Tongue Weight | 120 lbs |
| Tow Receiver Size | 2″ |
| Towable | Yes |
