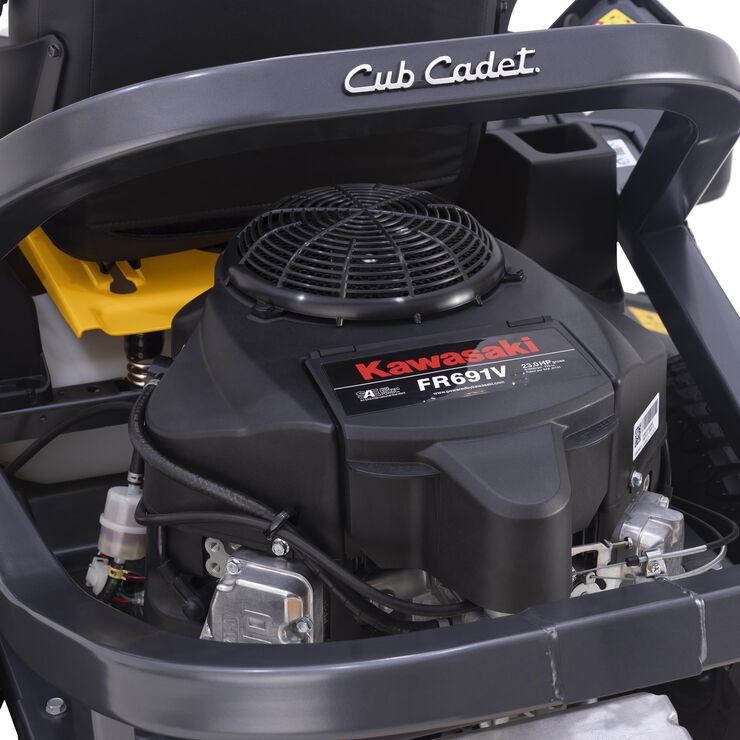

Engine
- Engine Brand Kawasaki®
- Engine Model FR Series
- Engine Model Number 691V
- Engine Displacement 726cc
- Engine Output 23HP
- Starter Type Electric
- Fuel Tank Capacity 3.5 gal. US (13.25 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.1 qt US ( 2 L)
- Lubrication Fully pressurized
- Charging System 12 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Separate Choke
- Air Filter Single element
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 230 CCA
- Battery Type Lead Acid
- Battery Voltage 12V
Drive System
- Transmission Hydro-Gear ZT 2800
- Forward Speed 7 MPH / 11.3 km/h
- Reverse Speed 3.5 MPH / 5.6 km/h
- Drive System Hydrostatic
- Serviceable Transmission Yes (Serviceable)
Cutting Deck
- Deck Cutting Width 50 in
- Deck Wash No
- Deck Material 11-gauge steel
- Deck Engagement (PTO) Electric
- Deck Construction Reinforced Fabricated
- Blade(s) Three
- Deck Lift Foot pedal with Dial Adjust
- Cutting Height Range 1” – 4.5”
- Anti-Scalping Three gauge wheels
- Deck Positions 15
Chassis
- Frame 2” x 2” tubular steel
- Turning Radius 0°
- ROPS No
- Rear Tow Hitch Yes
- Corrosion Protection Yes
- Front Caster Yokes 1/4″ Steel
Controls
- Cruise Control No
- Brakes Disc
- Steering Control Steering Wheel
Comfort
- Seat Type 20″ Cut-and-Sew with Head Bolster
- Armrests Yes
- Seat Adjustment Lever
- Front Caster Suspension No
Wheels
- Rear Tires 20”x 12”-8″
- Front Tires 13″x 6.5″-6″
- Tire Tread Turf Armor
Additional Specifications
- Hour Meter Yes
- Mulch Kit Available separately
- Headlight(s) LED Lightbar
- Cup Holder Yes
- Operator Presence System Yes
- Parking Brake Hand Lever
- Model Number 17CIGGY2A10
Warranty
- Residential Warranty 3-year unlimited hours
- Frame Warranty Lifetime Limited
- Deck Shell Warranty Lifetime Limited
- Commercial Warranty No
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Horsepower *As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International. Engine power ratings are as certified by the engine manufacturer. Actual operating power may vary. Refer to the engine manufacturer’s website for additional information.
- LED Lightbar Front LED Light Bar vs. Cub Cadet® Classic Twin LED Headlights 625-05041, measured in total lumens.
- Synchro-Steer™ *Synchro-Steer™ available on Cub Cadet Ultima Series™ ZS models
